£179.00 + vat
Where a hinged door would slow down constant foot traffic, heavy duty strip mesh fly screen doors allows people walk straight through — kitchen staff, trolleys, deliveries — while keeping flies, wasps, mosquitoes, midges and moths on the outside. Built for single or double commercial doorways, it’s a genuine year-round barrier rather than a seasonal fix, and it meets Food Safety Regulations for kitchens and food storage areas.
Each strip is 200mm wide with a soft sewn edge — so nobody catches themselves walking through — and a weight sewn into the base that lets the strip swing back into place the instant someone’s passed through, even in a breezy doorway. The panels overlap each other to keep the barrier continuous, and we offer either a 30% overlap for standard use or a 50% overlap for particularly exposed or windy locations.
Built for the harshest environments
The mesh itself is Suntex — a heavyweight industrial polyester built to withstand relentless daily use — while the header rail and fittings are 403-grade stainless steel, tough enough to have been chosen by P&O Ferries for use in salty sea air. If it holds up on a ferry deck, it will hold up on a kitchen doorway.
Where these doors are used
Because you can walk straight through it without breaking stride, strip mesh copes with footfall a hinged or roller screen can’t — hands stay free, trolleys keep moving, and the barrier falls straight back into place behind you. That’s why it’s the door of choice anywhere flies need keeping out but people, stock or air still need to move freely. A few of the settings our customers fit it in:
Food retail & preparation
- Butchers & meat counters
- Fishmongers
- Bakeries
- Delicatessens
- Farm shops
- Supermarket prep areas
- Greengrocers
Hospitality & catering
- Restaurants
- Takeaways
- Commercial kitchens
- Pub kitchens
- Cafés & coffee shops
- Hotel kitchens
- Catering production units
Food manufacturing & processing
- Food factories
- Meat processing facilities
- Packing areas
- Dairy processing
- Fresh produce facilities
Commercial & industrial
- Warehouse pedestrian entrances
- Waste handling zones
- Garden centres
- Agricultural buildings
- Stable doors
- Loading bays requiring airflow
Whichever of these matches your doorway, the door is made to your exact height and dispatched in 4 working days — if you’re not sure which overlap or fitting suits the setting, just get in touch and we’ll point you to the right spec.
Fitting and upkeep
Installation is a genuinely quick job: screw the header rail to your door frame, then hook the strips onto it — no specialist tools required, and the whole door is ready in minutes. Because each strip simply lifts off the rail, cleaning is just as straightforward: unhook them for a wash down, or run them through an industrial dishwasher if your kitchen has one, then hook them straight back on.
Made to your exact door height, this is about as low-maintenance as an insect barrier gets — and beyond keeping the flies out, the mesh also holds back leaves and general debris without cutting down daylight or airflow through the doorway.
The supplied header rail may be slightly longer than ordered and is easily trimmed to size.
CLICK HERE TO VIEW MORE IMAGES
Just enter the overall finished sizes required for an instant quote for your bespoke screen
- Description
Description
Product Features | |

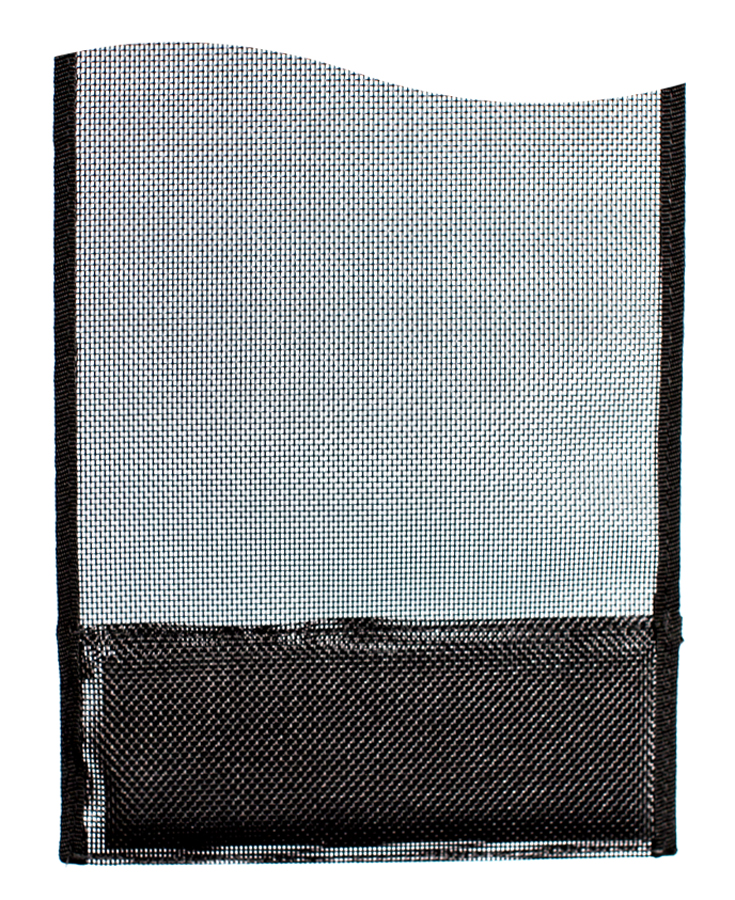

 | HEAVY DUTY STRIP MESH FLY SCREENSThe heavy duty strip mesh fly screens have overlapping panels to create a continuous barrier against flying insects but are easy to walk through. The fly mesh strips are 200mm wide with a soft sewn edging strip and integral base weight, which enables them to simply fall back into place. |
 | HOOK ON RAILS430-grade stainless steel header bars for easy installation of the strip mesh fly doors, simply hook on and off. |

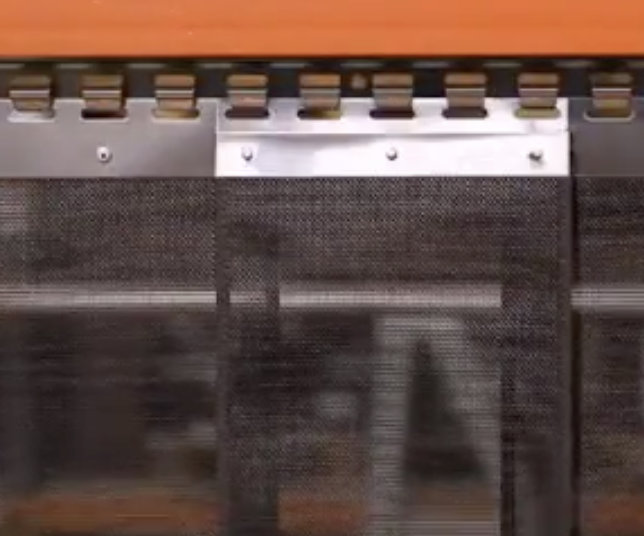

 | STAINLESS STEEL PLATES – 30% OVERLAPHook on/off durable stainless steel header plates suitable for heavy-duty use in catering environments. The 30% overlap covers one finger of the hanging rail on either side. |

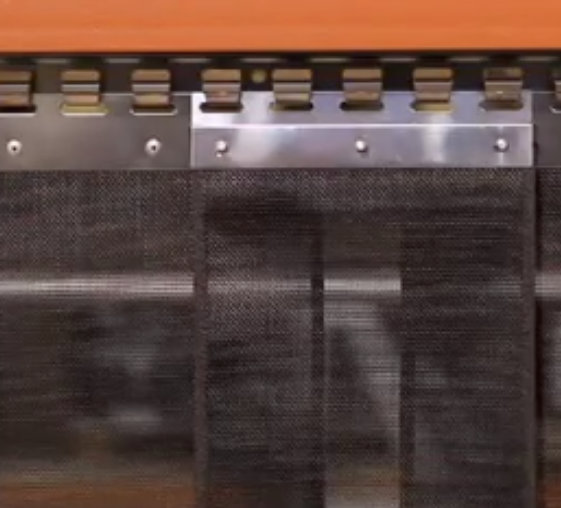

 | STAINLESS STEEL PLATES – 50% OVERLAPThe option of 50% overlap covers two fingers of the hanging rail on either side which is advisable in windy areas. |
 | HEAVY DUTY STRIP MESH FLY SCREENSThe heavy duty strip mesh fly screens are manufactured from Suntex insect mesh, the ultra-durable polyester industrial fly mesh. Soft sewn edges so they won’t hurt anyone as they walk through them and permanently sewn in weights to ensure the strip remains in position. |
| Screen type | Typical setting | How it works | Max width | Frame / mesh | Fitting |
|---|---|---|---|---|---|
| Single roller | Home | Spring-tensioned mesh pulls across and retracts into a slim aluminium cassette | up to 1.5 m | Decor grey; 20/30 midge mesh; toughened pet mesh; UV-reflecting | Inside or outside, onto wood, UPVC or metal; 10 mm recess tolerance |
| Double roller | Home — most popular | Two mesh panels meet in the middle and retract to each side | up to 3.5 m | As single roller | As single roller (guides in two sections above 2.3 m) |
| Plissé (pleated) | Home — wide / step-free | Concertina mesh folds into the cassette and holds any position | Wide openings, incl. bi-folds | Pleated mesh; cassette colours to match your doors | Very low base guide (no trip hazard); photo checked before quoting |
| Commercial fly screen door | Commercial kitchens & premises | Hinged panel door with a base kick plate, centre push plate and self-closer | Made to your exact size | 50 mm × 15 mm mitred & riveted aluminium frame; charcoal mosquito mesh | Ready-assembled; screw the hinges to your existing frame or subframe |
| Commercial heavy-duty | Busy commercial kitchens & high-traffic premises | Diamond metal grille protects the mesh and adds security; internal shoot bolt can be retrofitted | Made to your exact size | 50 mm × 15 mm frame; stainless steel mesh behind the grille | Ready-assembled; universal hinge fitting |
| Heavy-duty, solid base | High foot-traffic & delivery-cart premises | Same diamond-grille construction as the heavy-duty door, with a reinforced solid base built to take constant knocks | Made to your exact size | 50 mm × 15 mm frame; stainless steel mesh behind the grille | Ready-assembled; universal hinge fitting |
| Heavy-duty, double-action | Hands-free premises — kitchens, cafés, warehouses | Double-action hinges let the door swing both in and out; brush strip at the base helps keep out rodents too | Single doors up to 1050 mm; double doors up to 2100 mm | 50 mm × 15 mm frame; stainless steel mesh behind the grille | Subframe fitted first, then the ready-assembled door(s) hinge onto it |
| Strip mesh (walk-through) | Kitchen staff, trolleys & deliveries — constant foot traffic | Overlapping weighted mesh strips swing aside and fall straight back; 30% overlap standard or 50% for exposed/windy doorways | Single or double commercial doorways | Suntex industrial polyester strips; 403-grade stainless steel rail & fittings | Screw the rail up, hook the strips on; strips lift off individually to wash |
| PVC strip curtains | Warehouses, workshops & internal partitioning | Clear or ribbed PVC strips that flex aside for forklifts, trolleys and staff, then fall back into place; also helps hold in room temperature | Made to your opening | Thick tough PVC, 200 × 2 mm strips (standard) up to 300 × 3 mm (wider industrial entrances); clear or ribbed | Fixed rail; wipes clean, no ongoing maintenance |
| Perforated PVC strip curtains | High-traffic areas wanting extra airflow & visibility | Evenly perforated PVC strips let air circulate while still cutting down flies, dust and noise | Made to your opening | Perforated PVC, transparent | Fixed rail, same as standard PVC strip curtains |
| Chain fly screen | Home & commercial | A curtain of linked aluminium chain — walk straight through | Most widths (wide openings in sections) | Anodised aluminium chain, 1.8 mm wire | Ready-assembled at 2200 mm; hang on the brackets, remove links to height |
Frequently Asked Questions
What’s the difference between the 30% and 50% overlap options?
30% overlap is fine for standard use; the 50% overlap gives a more complete seal and is worth choosing for particularly exposed or windy doorways.
Is this suitable for a busy commercial kitchen?
Yes — it’s built for constant foot traffic and meets Food Safety Regulations for kitchens and food storage areas.
Will the strips stay in place in a breezy doorway?
Yes, each strip has a weight sewn into the base so it swings back into position immediately after someone’s passed through.
Customer Reviews
We believe that every customer’s experience with our company should be excellent, we ask our customers to provide feedback on their experience, these are some of the responses we have received…. more customer reviews
Buying for a food business? Strip mesh gives you insect protection with more airflow than solid PVC allows. If you’re buying for a food business, read what the regulations ask of a screened opening.
