£671.00 + vat (£805.20 inc VAT)

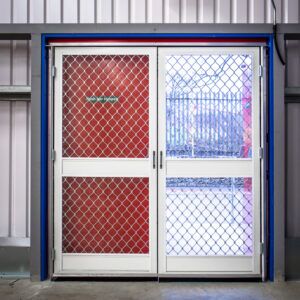

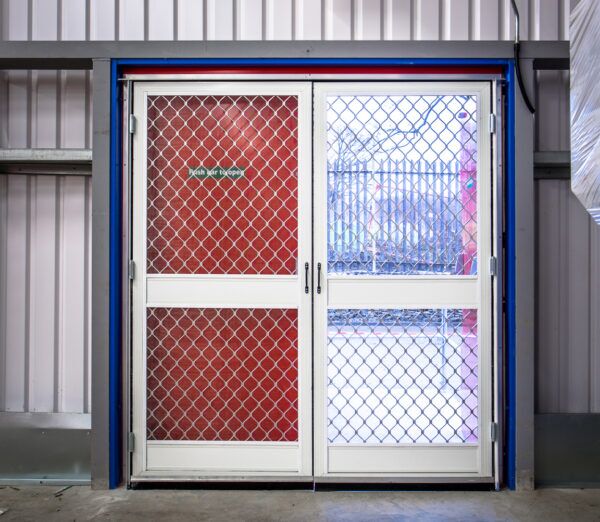

Double action fly screen doors for kitchens and busy back doors
Staff carrying trays or boxes can’t stop to pull a fly screen door open. A double action door swings both ways, so they can push straight through from either side, and the hinges bring it back to closed behind them.
We make the doors to your size in our own UK factory: 50 x 15 mm aluminium frames with mitred, riveted corners, stainless steel mesh with our Amplimesh diamond grille in front of it, a mid push bar and a base kick plate. That construction makes them the strongest heavy-duty fly screen doors available on the market. A brush strip along the base helps keep rodents out as well as insects. Frames come in white or brown.
Single doors go up to 1,050 mm wide; anything wider comes as a pair of double doors, up to 2,100 mm. The doors arrive assembled, with a 50 x 100 mm aluminium subframe made to your size: you fit the subframe to your door frame, screw the hinges to the doors and hang them. For extra security you can retrofit an internal shoot bolt, so the door can’t be opened from outside.
Enter your sizes in the calculator below for an instant price; most orders are dispatched in 4 to 7 working days.
What you’ll receive
- Ready-assembled fly screen door or doors, made to your size
- Three double action hinges per door, which bring the door back to closed after each use
- An external handle
- A brush strip for the base
- A subframe made to your size, to fit onto your existing door frame
- Stainless steel mesh with our Amplimesh grille over it
With double doors, how well the two meet in the middle depends on how square your door frame is, so we can’t promise there’ll be no gap.
Mesh specification
- Woven Grade 304 stainless steel insect mesh
- Standard Wire Gauge 31
- Wire thickness 0.3 mm
- Aperture (hole size) 1.29 mm
- Open area 65.78%
- Weight 710 grams per square metre
- Description
Description
Photos, downloads and construction details for our double action fly screen doors.
Downloads and guides |
|
![]() |
Installation instructionsMeasuring guide |
Product construction |
|
![]() |
Robust aluminium framesOur double action fly screen doors have commercial quality, heavy-duty 50 x 15 mm aluminium frames, finished in white or brown. Mitred corners with riveted internal strengtheners for durability. The double-action doors come with a perimeter brush pile along the edge to create a seal. |
![]() |
Mid push barThe commercial doors come assembled with a mid bar providing additional strength and protection to the mesh |
![]() |
Base kick plateThe base kick plate will protect the door and mesh, it is particularly useful where staff are coming in and out carrying goods and then use their feet to push open the door |
![]() |
Amplimesh grilleIn addition to the stainless steel fly mesh the heavy-duty door has two aluminium diamond grilles covering and protecting the door mesh openings from constant use in a busy commercial environment |
![]() |

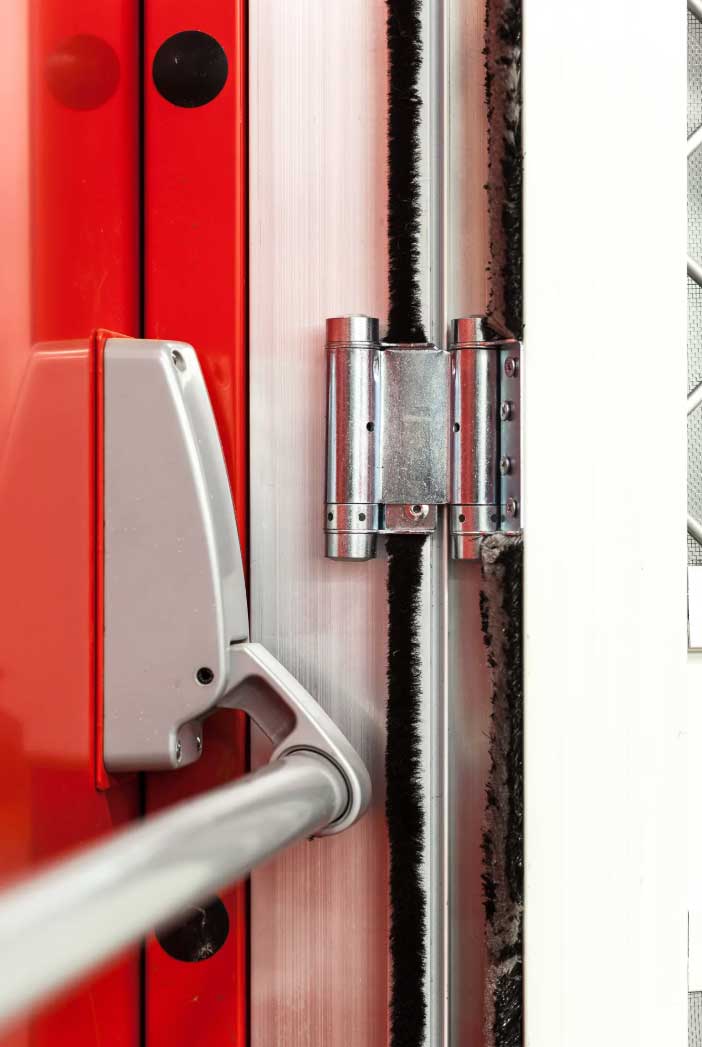

Double action hingesThe hinges let double action fly screen doors swing both in and out, and bring the door back to closed on its own. |
![]() |
Door handleEach door comes with a handle for external opening |
![]() |
SubframeThe subframe is 50mm x 100mm and has an integral brush pile to create a seal when the door is closed |
| Screen type | Typical setting | How it works | Max width | Frame / mesh | Fitting |
|---|---|---|---|---|---|
| Single roller | Home | Spring-tensioned mesh pulls across and retracts into a slim aluminium cassette | up to 1.5 m | Decor grey; 20/30 midge mesh; toughened pet mesh; UV-reflecting | Inside or outside, onto wood, UPVC or metal; 10 mm recess tolerance |
| Double roller | Home (most popular) | Two mesh panels meet in the middle and retract to each side | up to 3.5 m | As single roller | As single roller (guides in two sections above 2.3 m) |
| Plissé (pleated) | Home; wide or step-free openings | Concertina mesh folds into the cassette and holds any position | Wide openings, incl. bi-folds | Pleated mesh; white cassettes | Very low base guide (no trip hazard); photo checked before quoting |
| Commercial fly screen door | Commercial kitchens & premises | Hinged panel door with a base kick plate, centre push plate and self-closer | Made to your exact size | 50 mm × 15 mm mitred & riveted aluminium frame; charcoal mosquito mesh | Ready-assembled; screw the hinges to your existing frame or subframe |
| Commercial heavy-duty | Busy commercial kitchens & high-traffic premises | Diamond metal grille protects the mesh and adds security; internal shoot bolt can be retrofitted | Made to your exact size | 50 mm × 15 mm frame; stainless steel mesh behind the grille | Ready-assembled; universal hinge fitting |
| Heavy-duty, solid base | High foot-traffic & delivery-cart premises | Same diamond-grille construction as the heavy-duty door, with a reinforced solid base built to take constant knocks | Made to your exact size | 50 mm × 15 mm frame; stainless steel mesh behind the grille | Ready-assembled; universal hinge fitting |
| Heavy-duty, double-action (this door) | Hands-free premises: kitchens, cafés, warehouses | Double-action hinges let the door swing both in and out; brush strip at the base helps keep out rodents too | Single doors up to 1050 mm; double doors up to 2100 mm | 50 mm × 15 mm frame; stainless steel mesh behind the grille | Subframe fitted first, then the ready-assembled door(s) hinge onto it |
| Strip mesh (walk-through) | Kitchen staff, trolleys & deliveries; constant foot traffic | Overlapping weighted mesh strips swing aside and fall straight back; 30% overlap standard or 50% for exposed/windy doorways | Single or double commercial doorways | Suntex industrial polyester strips; 430-grade stainless steel rail & fittings | Screw the rail up, hook the strips on; strips lift off individually to wash |
| PVC strip curtains | Warehouses, workshops & internal partitioning | Clear or ribbed PVC strips that flex aside for forklifts, trolleys and staff, then fall back into place; also helps hold in room temperature | Made to your opening | Thick tough PVC, 200 × 2 mm strips (standard) up to 300 × 3 mm (wider industrial entrances); clear or ribbed | Hook-on stainless steel rail; bolt-on or sliding track available |
| Perforated PVC strip curtains | High-traffic areas wanting extra airflow & visibility | Evenly perforated PVC strips let air through while still cutting down flies and dust | Made to your opening | Perforated PVC, transparent | Hook-on stainless steel rail; bolt-on or sliding track available |
| Chain fly screen | Home & commercial | A curtain of linked aluminium chain; walk straight through | Most widths (wide openings in sections) | Anodised aluminium chain, 1.8 mm wire | Ready-assembled at 2200 mm; hang on the brackets, remove links to height |
Double action fly screen door FAQs
How much do double action fly screen doors cost?
Prices start at £671 + VAT for a single door. Delivery is £12 + VAT.
What’s the largest size you can make?
Single doors up to 1,050 mm wide and double doors up to 2,100 mm wide, up to 2,300 mm high.
When do I need double doors?
For any opening wider than 1,050 mm. Choose “Double Doors” in the hinges option, and we’ll make a pair that meets in the middle.
How is it fitted?
Fit the 50 x 100 mm subframe to your existing door frame, screw the double action hinges to the doors, then hang them on the subframe. The installation instructions are under Downloads and guides.
Will double doors close without a gap?
It depends on how square your door frame is, so we can’t guarantee a gap-free fit.
What’s the difference between this and your commercial heavy-duty fly screen door?
That door opens one way and is closed by a door closer. This one swings both ways and closes on its own hinges, so staff never need a free hand.
How quickly will it be dispatched?
Usually within 4 to 7 working days.
