Ready assembled fly screens with a subframe to clear window handles

Most uPVC windows have a handle that sticks out from the frame, and a flat fly screen panel won’t sit over it. This version comes on a subframe: a 50 x 25 mm white uPVC frame that builds the screen out 50 mm, so it clears window handles that stick out up to 50 mm.

We make the screen and subframe up to your sizes in our own UK factory. The screen is a white aluminium frame with mitred corners and a brush pile on the back. It hangs on lift-off hinges, at the top or either side, and turn buttons hold it shut, so you can take it off to clean the window or store it for the winter.

The standard Easy View mesh keeps out flies, mosquitoes, wasps and spiders, but not midges; for those, choose the midge mesh. If your window handles aren’t in the way, our ready assembled panel fly screens without a subframe cost less.

What you’ll receive

  • The assembled fly screen panel or panels
  • The subframe, in white to match the screen frame
  • Slide on/off hinges, with screws to fix them to the fly screen frame
  • Turn buttons to hold the panel in place, with screws

Enter the overall finished size of the subframe for an instant price. Most orders are dispatched in 4 to 7 working days.

Category:
Width (mm)
Height (mm)
Mesh Type
Mesh Colour
Black
Dispatch Time
Product Price: 96.00
Additional Options: 0.00
Order Total : 96.00

Description

Our ready assembled fly screens with subframe come with the screen already built and a white uPVC subframe that builds it out 50 mm, clear of the window handle. Click on the pictures for larger images.



Product construction

ready-assembled-fly-screen-panel

Ready-assembled fly screens

We build our ready assembled fly screens with subframe from robust aluminium frames with a scratch-resistant polyester coating, in white. The panels have mitred corners and an integral brush pile on the rear to seal with the window frame.

Fly Screen Hinges

Fly screen hinges

The lift off hinges allow the panel fly screens to be easily removed for cleaning or storage. The fly screens can be hinged from the top or sides and the hinge depth is 12mm

Fly Screen Turn Buttons

Turn buttons

Turn buttons that simply pivot to hold the hinged panel fly screens in place against the window frame, the turn button depth is 10mm.

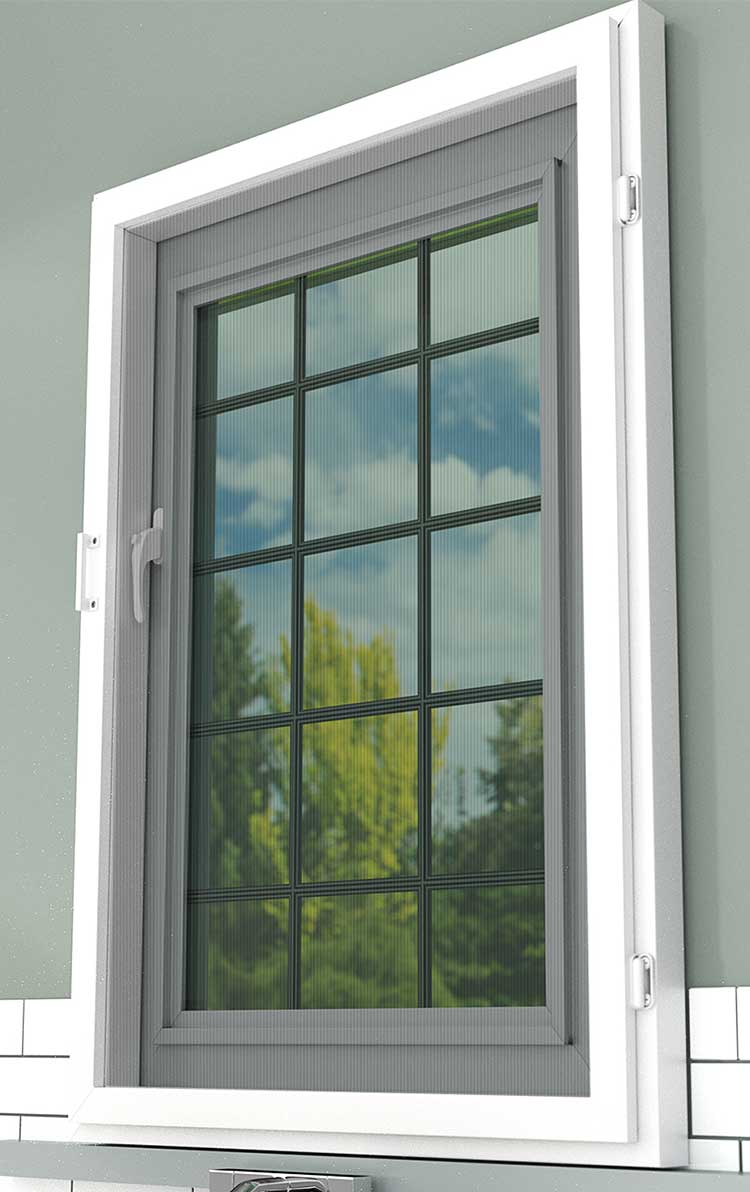

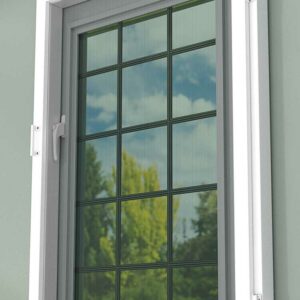

Ready assembled fly screens with subframe, white subframe built out around a casement window

Subframe

Ready assembled fly screens with subframe are mounted on a 50 x 25 mm uPVC subframe, which builds them out past most window handles.

Mesh options

Insect mesh options

Easy View mosquito mesh keeps out flies, mosquitoes, wasps and spiders, but not midges, and it gives good visibility and airflow. Midge mesh keeps out the smaller midges and corn flies as well. Both come in black.

Measuring and ordering

How to measure for fly screens

Measurements

Click Here for instructions on taking measurements for your hinged fly screens


Ready assembled fly screens with subframe FAQs

What’s the subframe for?

It builds the screen out 50 mm from the window frame, so it clears window handles and other hardware that would stop a flat panel sitting flush.

Does it arrive ready to fit?

Yes. The screen and subframe arrive assembled; you fix the subframe to the window frame and hang the screen on its hinges.

How much do ready assembled fly screens with subframe cost?

Prices start at £96 + VAT. Midge mesh adds £20 + VAT, and delivery is £12 + VAT.

What size should I order?

The overall finished size of the subframe.

What’s the largest size you can make?

Up to 1,200 mm wide and 1,100 mm high, measured as the overall size of the subframe.

Will it clear my window handle?

It builds out 50 mm, so it clears handles that stick out up to 50 mm from the window frame. If your handle sticks out further than that, the subframe won’t clear it.

What colours do the frames come in?

White, for both the screen frame and the uPVC subframe.

How quickly will it be dispatched?

Usually within 4 to 7 working days.

Buying for a food business? The screen lifts off its hinges for washing, so it doesn’t stay fixed in the window. The food hygiene regulations say screens on opening windows should be easy to remove for cleaning.
