Roller Fly Screens for Windows

Description

	ROLLER FLY SCREEN Retractable roller fly screens, slimline 40mm cassette housing up to 2300mm of mesh to suit all window types. The pull down bar creates the seal with the window sill as it has an integral brush pile, and if you don’t have a sill then we can supply base bars to create the seal. The roller fly screen system can be installed directly onto the window frame or into the window recess (reveal install)

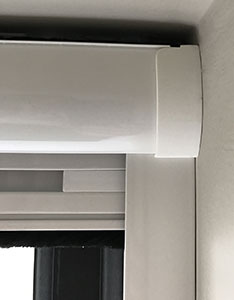

	EXPANDING END CAPS There is an option of 2 end caps. The face fit option has the slim end cap with no visible lugs and the reveal fit option will have the screw lugs and our unique expansion spring. This enables you to reveal install and allow up to 15mm tolerance in the dimension, no worries about getting the exact measurement as it will expand into the opening!
	DURABLE COMPONENTS Nylon components and aluminium frames to ensure trouble free operation and a long durable life.
	MOSQUITO MESH There is a choice of our standard mosquito mesh which has 18/16 strands which is sufficient to help keep out most types of flies, mosquitoes, wasps, bees, spiders etc and it is available in grey decor or black mesh. The darker the mesh then the easier it is to see through as less light is reflected off the mesh.
	MIDGE MESH The midge mesh has a finer weave of 19/19 strands and it will help to keep out most small midges, as well as the larger flies, click here to see the mesh specification. This mesh has been specifically designed for use in our roller fly screen system with the aim of maximising air flow but helping to keep out the smaller midge type flies.
	PET MESH There is also a choice of pet mesh, the meshes aren’t visibly different, they are treated to strengthen the mesh to help protect against occasional pet claw swipes. As with all animals, pets are individuals and we cannot guarantee that a pet could not get through the mesh, so we would recommend using additional measures to keep pets indoors and to let them get accustomed to the mesh screen.
	SUNOX MESH All our roller fly screen ranges now come with Sunox mesh as standard which is naturally antibacterial. Sunox mesh filters the air, preventing the formation of germs and bacteria and reducing the presence of polluting particles in the air.
	CHOICES You can choose to have handles, pull cords, choice of pull weights or no base bar components at all and just use the decorative channel for operation
	BRAKE Optional internal brake that slows down the spring retraction system, this is especially useful where children may be using the screens
	HANDLES The roller fly screen can be assembled with handles to draw the mesh out of the cassette, or if you want a more streamlined look the groove where the handles slide can be used to operate the screen
	PULL CORD Again there is a choice to have a pull cord or this can be left out of the unit, the image shows the pull cord with the standard end pull
	OPTIONAL PULL WEIGHT Choose from the standard nylon pull weight or the nickel pull for a more contemporary look
	INTEGRAL BRUSH PILE The side guides have an integral brush pile which ensures a complete seal with the insect mesh so no insects can pass through
	STANDARD SIDE GUIDE Our standard side guide comes with an integral brush pile to create the seal with the fly mesh
	WIND PILE If you live in a windy area then consider having our interlocking wind pile installed, the filaments lock into the mesh to hold it in position
	BASE BAR This is used where there is no window sill to seal to, the base bar is screwed to the window frame and the roller fly screen sits within it
	BASE CATCH Our standard base catch comes in white to match the cassette and sits on the external of the side guide. The catch is adjusted by turning the brass screw, just in case your window sills aren’t flat, this catch is recommended for use with the midge mesh
	INTERNAL CATCH There is the alternative internal catch which fits neatly into the side guide but isn’t adjustable
	MEASUREMENTS Click Here for instructions on taking measurements for your roller fly screens

Roller Fly Screens – Bespoke Sizes or Fitted By Experts

Our retractable fly screens for windows can be purchased in bespoke sizes with the cassettes ready assembled to your own precise measurements at trade prices! We also offer a professional fitting service for residential and commercial customers across the UK.

Retractable Insect & Fly Screens for Your Windows

How do our roller fly screen systems work?

The insect mesh is housed inside the aluminium cassette out of view and is kept taut by a tensioned spring, which is out of view, inside the cassette. The end of the mesh is held by a handle bar which enables you to draw the mesh out of the cassette and down over the open window or door. From the head of the cassette down to the window sill are two side guides, which allow the mesh to travel along and also creates a seal to help prevent any flies from entering your room.

Once the mesh has been pulled down to cover the window, the handle bar is held in place by clips which are fixed into the side guides, these prevent the mesh from retracting until you are ready to close the screen. When you release the handle bar from the clips the retraction spring takes the mesh back into the cassette.

Our pull down, window screens are easy to install and form a fully sealed unit to the window frame or reveal – helping to keep out all flying insects. The mesh is available in black fly mesh, grey decor fly mesh or midge fly mesh and is easily cleaned by simply vacuuming.

All the casings are made from polyester coated aluminium which gives strength and durability, as well as preventing chipping and scratching and are very easy to keep clean by simply wiping with a damp cloth. The screens are suitable for both commercial and residential use and can be installed inside or outside. They are also completely rust proof and UV resistant.

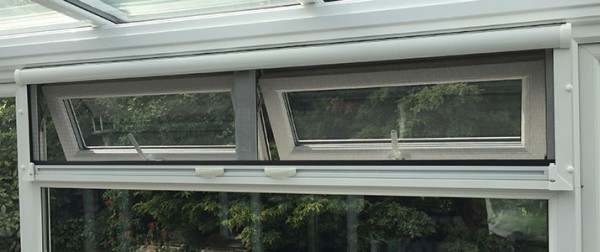

Whether you are in need of a large retracting fly screen for a conservatory or patio door, a convenient pull down roller fly screen for the kitchen window, or a multiple panel fly screen system for a food production facility, our premium quality insect screens offer unrivalled performance at the lowest possible prices.
